Body Material: ABS
Size: 100*100*20mm (3.94″*3.94″*0.79″)
Filling: Epoxy+Quartz sand
Lens Material: PMMA

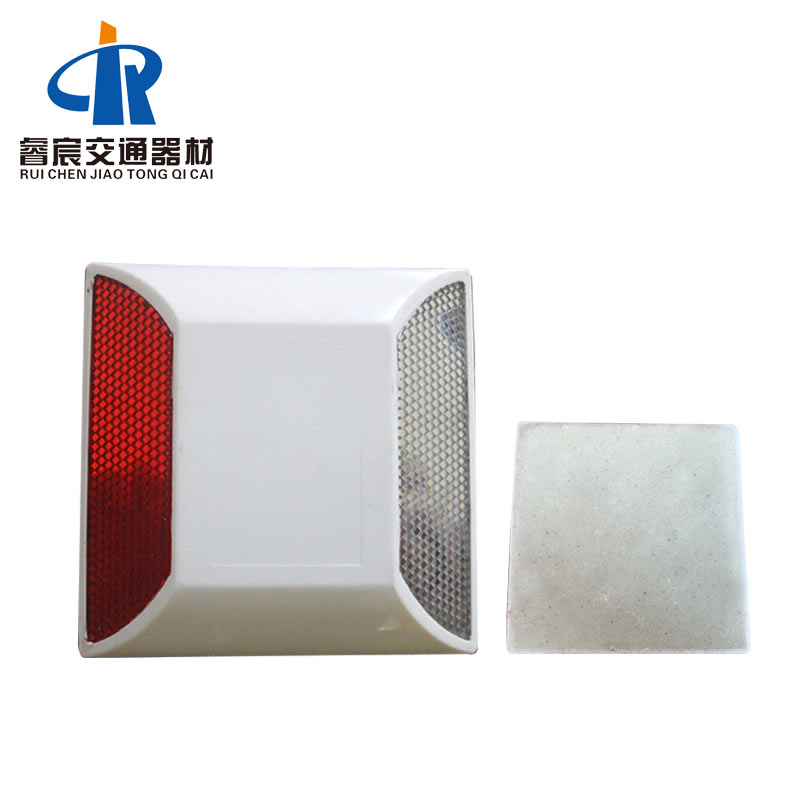

Plastic Reflective Road Stud Features:
•Reflective studs water, oil, chemical, and heat resistance.
•Reflective Road Studs can work more than 3 years normally.
•Very high reflectivity.
•Reflective Road Studs easy installation with glues.
•Photometric values:exceeds 600(mcd/lux).
Plastic Reflective Road Stud Parameters:
| Body material: | ABS |
| Filling: | Epoxy+Quartz Sand |
| Lens Material: | PMMA |
| Reflector type: | Double side/Single side |
| Quality: | ASTM D4280 & EN1463-1 standard |
| Size: | 100*100*20mm (3.94″*3.94″*0.79″) |
| Packing: | 56*22.5*22.2cm,100pcs/ctn (22.05″*8.86″*8.74″,100pcs/ctn) |
| Weight: | 250g/pc; 25kg/ctn (0.55bs/pc; 55.12bs/ctn) |
Installation Method Of Road Stud:
1. Determine the installation location and distance, clean the road surface, and ensure that the road studs are installed on a flat road surface.
2. Clean the bottom of the road studs and apply the epoxy glue evenly to the back of the studs.
3. Press the side with the glue on the road, fix the position, wait for the glue to dry.
4. Check within 2 hours of installation to ensure that all road studs are not installed incorrectly and are not bent or deformed due to compression.
5. Remove the installation isolation facility within 6-8 hours after the installation of the road studs.
Load Bearing: More Than 30 Tons
Warranty: 18 Months
Body material: GB Cast Aluminium alloy
Power supply: USA Brand Flexible High Efficient Solar Panel (2.5V/0.38W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: With shank or Without shank
Load Bearing: >20T(static)
Warranty: 12 Months
Body material: GB Cast Aluminium alloy
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: With shank or Without shank
